3D Rigging Using Building Information Modeling

R. Baker & Son was recently engaged in a complex project in which we were tasked with rigging and setting numerous pieces of process equipment from more than thirty different vendors. Items ranged from large process skids and tanks to small peristaltic dosing pumps. Project designers used 3-D building information modeling (BIM) to coordinate and build the project virtually to ensure that all of the equipment came together flawlessly once onsite.

All equipment was placed into the master model, followed by process piping, plumbing, and electrical, which included control panels in varying sizes. Virtual BIM tours allowed owners to accurately visualize the form and function of the future facility. Prior to the arrival of the process equipment, pipes, platforms, and steel supports were prefabricated and installed with absolute laser precision based on the 3-D model.

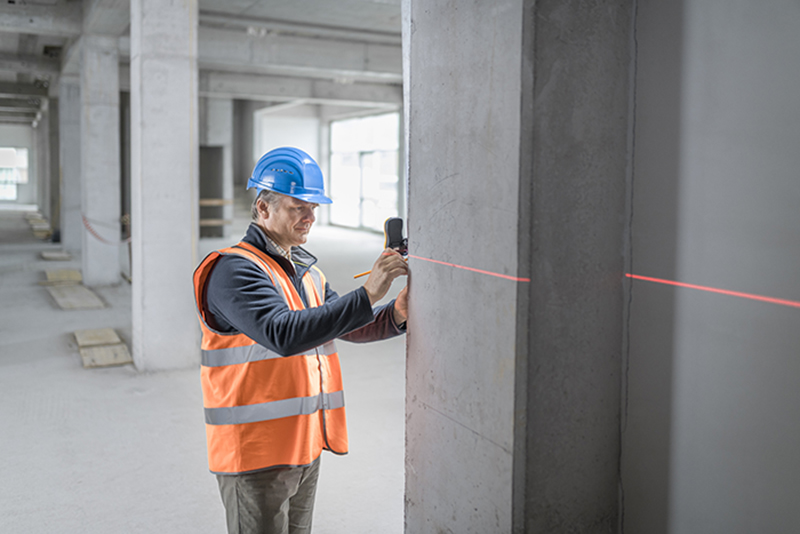

Fabrication and installation had to be exact – in many cases +/- 0.25 inches – in order to ensure that the many pumps, tank nozzles, and process equipment would have a precise flange-to-flange orientation when rigged into place. To ensure accurate rigging, R. Baker & Son used the approved 3-D model to transfer the design to the field via lasers to align critical parts. Ultimately, all process equipment was rigged into place successfully with few problems.
